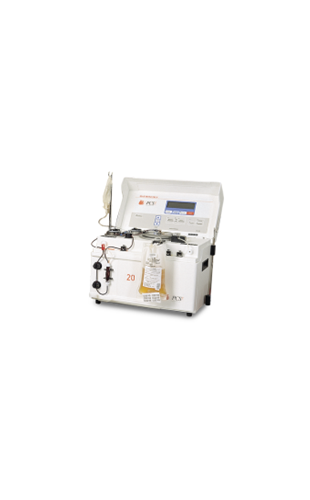

The PCS300 plasma collection system is designed specifically for plasmapheresis. It provides high performance, reliability and quality of the device. Plasmapheresis is carried out in an automated single-needle blood centrifugation mode. Small dimensions and weight (no more than 30 kg) allow it to be delivered to any place.



The device is ready for operation almost immediately after turning on the power after the monitoring system has carried out tests for malfunctions and compared the technical characteristics with the specified values. It is possible to obtain the following products: • plasma with low platelet content (PPP); • plasma for freezing (FFP). After the plasma collection cycle, the remaining blood cells are returned to the donor. In this case, it is possible to replace the plasma with a NaCl solution during the return cycle.



The safety and effectiveness of the procedure is ensured by the use of:



•self-priming pumps

•high quality optical sensors

•pressure monitor in donor line pipes

•redundant air sensors

•communication data block or internal data card

•barcode reader Simplicity and maximum understanding of operation thanks to:

•automatic refueling

•minimum number of warnings

•easy to read display



The device software is represented by the NexSys PCS® plasma collection system. The NexSys PCS® Plasmapheresis System features bi-directional BECS connectivity, a large touch screen, built-in control system, automatic treatment programming, silent operation, color beacon and donor information display. NexSys PCS software allows you to precisely target pure plasma collection volume rather than total donation volume.



NexSys PCS is designed to optimize efficiency and ease of use by:



• Enabling automatic data collection and donor attraction signals;

• Using a new user interface to create step-by-step workflow support;

• Providing real-time monitoring of procedures and intervention prompts;

• Integration of a simplified centrifuge lid lock;

• Inclusion of easier-to-load linear sensors;

• Integration of a barcode scanner to track batches of consumables;

• Providing an internal structure that is easier to maintain.

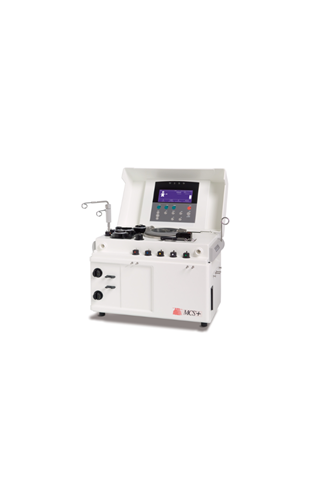

Mobile device for cyto- and plasmapheresis MCS+ HAEMONETICS Used for collecting blood components, including platelets, plasma and red blood cells, as well as for therapeutic operations. The development of the device uses 30 years of experience and a continuous pursuit of high quality in apheresis technology. Versatility Card protocol technology (Universal Platelet Protocol UPP) provides instant access to all procedures.



The compact and portable mobile device is designed for use in field settings, in blood centers and medical institutions; it also provides easy and convenient procedures in the patient treatment program. Comfort



• Quiet operation, creating an ideal environment for patient and donor.

• Single needle technology for a simpler, more comfortable procedure.

• Automated blood collection and return rates adapt to each donor's unique blood return characteristics.

• The ability to replenish with saline allows you to replenish fluids lost during donation. •Citrate monitoring to ensure the comfort of your donors Perform a wide range of actions

• The speed of blood withdrawal and return is adjusted by the device automatically, adapting to the characteristics of the blood flow of each patient individually.

• The device is equipped with a built-in hemocalculator, which allows the operator to optimize the apheresis process depending on the individual characteristics of the donor or patient.

• The device system controls and controls the amount of anticoagulant.

• Provided with a complete disposable kit for all blood components and treatment options. Simplicity

• The user interface is presented in the form of a bright display that displays all procedure parameters in real time.

• The device allows you to save the parameters of past procedures. Practicality

• The body is made of durable shockproof materials, the reliable coating ensures easy disinfection even with aggressive detergents.

• The device is transportable and can be used on the road, including in specialized transport

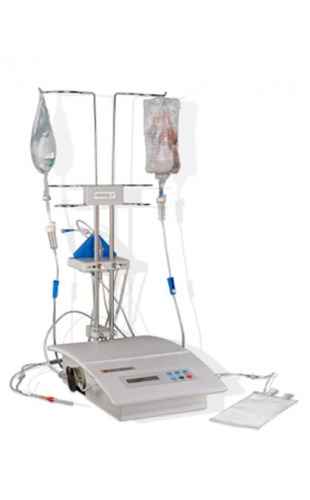

The continuous process of membrane plasmapheresis on the HEMOFENIX device is carried out using a single-needle circuit in a sterile single-use extracorporeal circuit. During the procedure, the formed elements are returned to the patient’s bloodstream, the plasma is collected in a special receiver, and plasma replacement is performed.



The device meets the latest safety requirements, has a microprocessor control system and three independent sensors that ensure safe operation. The optimal price-quality ratio makes the HEMOPHENIX device available for equipping medical institutions and blood transfusion departments.

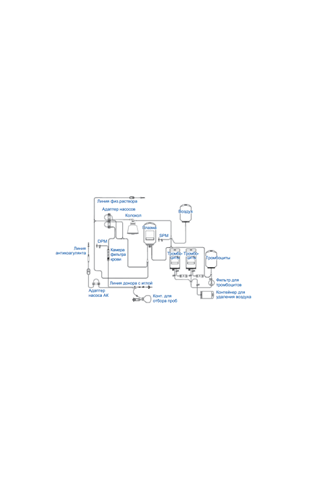

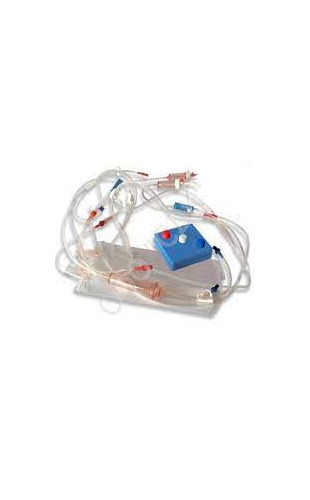

Disposable functional closed kit intended for use on the MCS+ Haemonetics device. Review collection, operator-defined quantities of concentrated platelets and processes for receipt, transport, storage and transfusion.



The maximum yield of platelet product in one procedure is two containers with a volume of 1000 ml each, with a long shelf life of 12.0 x 10^11 cells, plasma up to 600 ml, for transfusion of patients with blood diseases.



The maximum allowable number of platelets for storage in one bag when suspended in plasma is up to 6.0 x 10^11 cells. Extracorporeal volume of consumables is up to 225 ml for the procedure.

A disposable kit for membrane plasmapheresis is a plasma filter “ROSA” - a membrane disposable sterile filter in which the liquid part of the blood - plasma - is separated using a tangential flow along the surface of a track membrane.



The smooth surface of the membrane and the correct shape of the pores ensure low trauma to blood cells, which are returned to the patient along with part of the plasma diluted with a plasma-substituting solution.



The small primary volume of filling the system with blood allows plasmapheresis to be performed even for newborn children weighing over 700 g; KMAP-01 lines are used together with the Rosa plasma filter and the AMPld-TT device for donor and therapeutic plasmapheresis.



The kit is supplied sterile and can be used without preparation (processing). Made of non-toxic materials, elastic hoses do not break, do not crack, leak-proof, tear-resistant. The kit consists of a line for blood collection, hoses and containers for plasma collection;

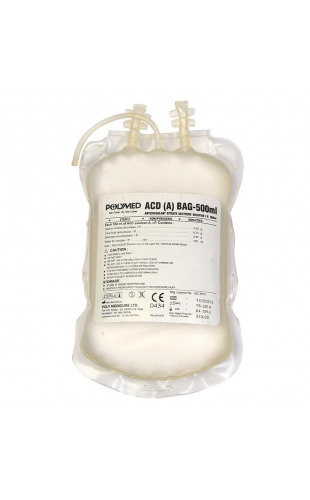

A solution of hemocoservant ACD-A is a drug used as a blood stabilizer during any extracorporeal procedure, including plasmapheresis.



Volume 500 ml. Each 100 ml of solution contains: sodium citrate dihydrate 2.20 g, anhydrous citric acid 0.73 g, glucose monohydrate 2.45 g, water for injection 100 ml. Sterile, pyrogen-free, non-toxic

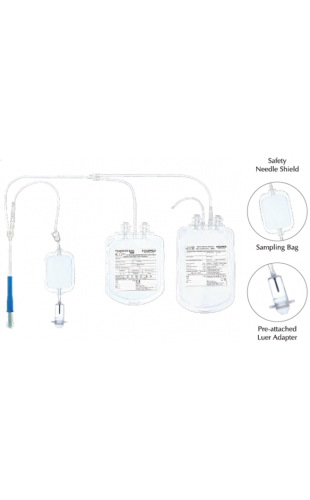

Disposable, sterile blood bags with anticoagulant, line and needle. Container material: polyvinyl chloride for medical purposes using a special plasticizer, ensuring high reliability of seams, elasticity and wear resistance; consists of 2 polymer containers with a capacity of 450/300 ml, which are interconnected through polymer tubes.



Each bag has two entrance holes; the volume of anticoagulant/preservative in the primary container is 63 ml, sufficient to collect at least 450 ml of blood; donor needle type - 16G; the needle is protected by a plastic tip with a seal, has ultra-thin walls with a siliconized coating to ensure maximum blood flow and minimal discomfort for the donor; line diameter 3 mm; the length of the donor line is at least 90 cm; sterile, pyrogen-free and non-toxic; temperature regime +10 +25°С.

Disposable, sterile blood bags with anticoagulant, line and needle. Container material: polyvinyl chloride for medical purposes using a special plasticizer, ensuring high reliability of seams, elasticity and wear resistance; consists of 2 polymer containers with a capacity of 450/300 ml, which are interconnected through polymer tubes.



Each bag has two entrance holes; the volume of anticoagulant/preservative in the primary container is 63 ml, sufficient to collect at least 450 ml of blood; donor needle type - 16G; the needle is protected by a plastic tip with a seal, has ultra-thin walls with a siliconized coating to ensure maximum blood flow and minimal discomfort for the donor; line diameter 3 mm; the length of the donor line is at least 90 cm; sterile, pyrogen-free and non-toxic; temperature regime +10 +25°С.

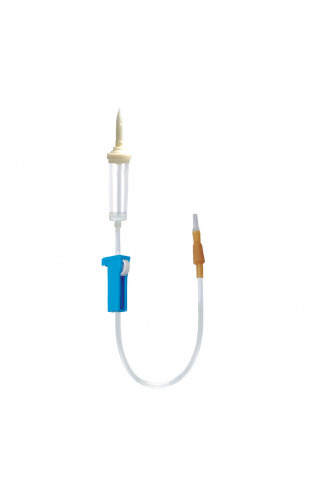

An infusion set is used to administer medications into a patient's circulatory system. The device includes tubing, infusion set (IV), drip chamber, fluid supply tubing and connectors between parts of the set, as well as a hollow pin for connecting the tubing to the IV bag, three-way stop valve, check valve, needle-free connectors, etc.



The IV tubing is either a macrodrip set that delivers 20 drops/mL or a microdrip set that delivers 60 drops/mL. Macro IV sets are used for routine primary infusions. Microdrip tubing for intravenous infusion is used mainly in pediatrics or neonatology when it is necessary to administer small amounts of fluid over a long period of time.
